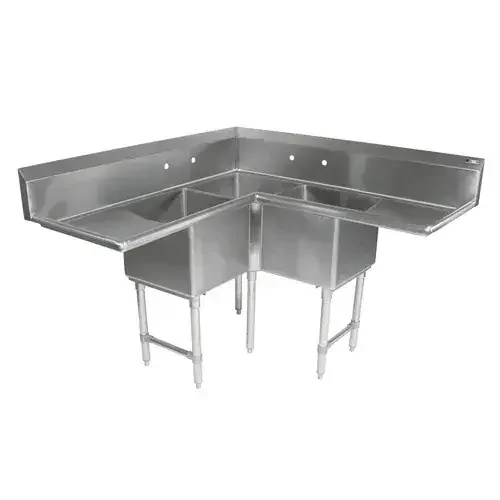

John Boos 3PBCS1824-2D30 Pro-Bowl Corner Sink

Description

John Boos 3PBCS1824-2D30 Description

Pro-Bowl Corner Sink, 3-compartment, 76-1/2″W x 76-1/2″D x 44-1/16″H overall size, (2) 18″W x 24″ front-to-back x 12″ deep compartments & (1) 24″W x 24″ front-to-back x 12″ deep compartment in corner, (2) 30″ left & right drainboards, 10″H boxed backsplash with 45° top and 2″ return, (2) sets of splash mount faucet holes with 8″ centers, 3-1/2″ die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, bracing, & adjustable bullet feet, NSF, CSA-Sanitation

Standard Features:

• 16ga Stainless Steel
• 1″ Faucet Holes in Backsplash
• 8″ On-Center Faucet Holes in Backsplash
• Front to Back and Left to Right Lower Bracing
• Standard Stainless Steel Legs 1-5/8″ Diameter
• 12″ Or 14″ Deep Three Compartment Sink Bowls
• Type 300 Stainless Steel With #4 Polish, Satin Finish
• All Corners, both Vertical and Horizontal, Coved at 3/4″ Radius
• All Outside Corners of Assembly are Bullnosed to Provide Safe, Clean, and Polished Edge
• Bottoms of Commercial Sink Bowls Formed for Drainage to 3-1/2″ Diameter Die Stamped Opening
• Full Length 10″ High Boxed Backsplash, with 2″ Return to Wall at 45 Degree and 1″ Turned Down Rear Lip
• Note: More Restaurant Equipment, Compartment Sinks & Underbar Sinks are available

Construction

• Base: Stainless Steel Frame is TIG Welded
• Top: Stainless Steel Sinks are TIG Welded, Exposed welds are Polished to Match Adjacent Surface

Material

• Gussets: Stainless Steel
• Legs: 1-5/8″ Round O.D. Stainless Steel
• Bracing: 1-1/4″ Round O.D. Stainless Steel
• Feet: 1″ Adjustable Stainless Steel Bullet Feet
• Bowls & Top: 16ga Type 300 Stainless Steel with #4 Polish, Satin Finish

John Boos 3PBCS1824-2D30

<
